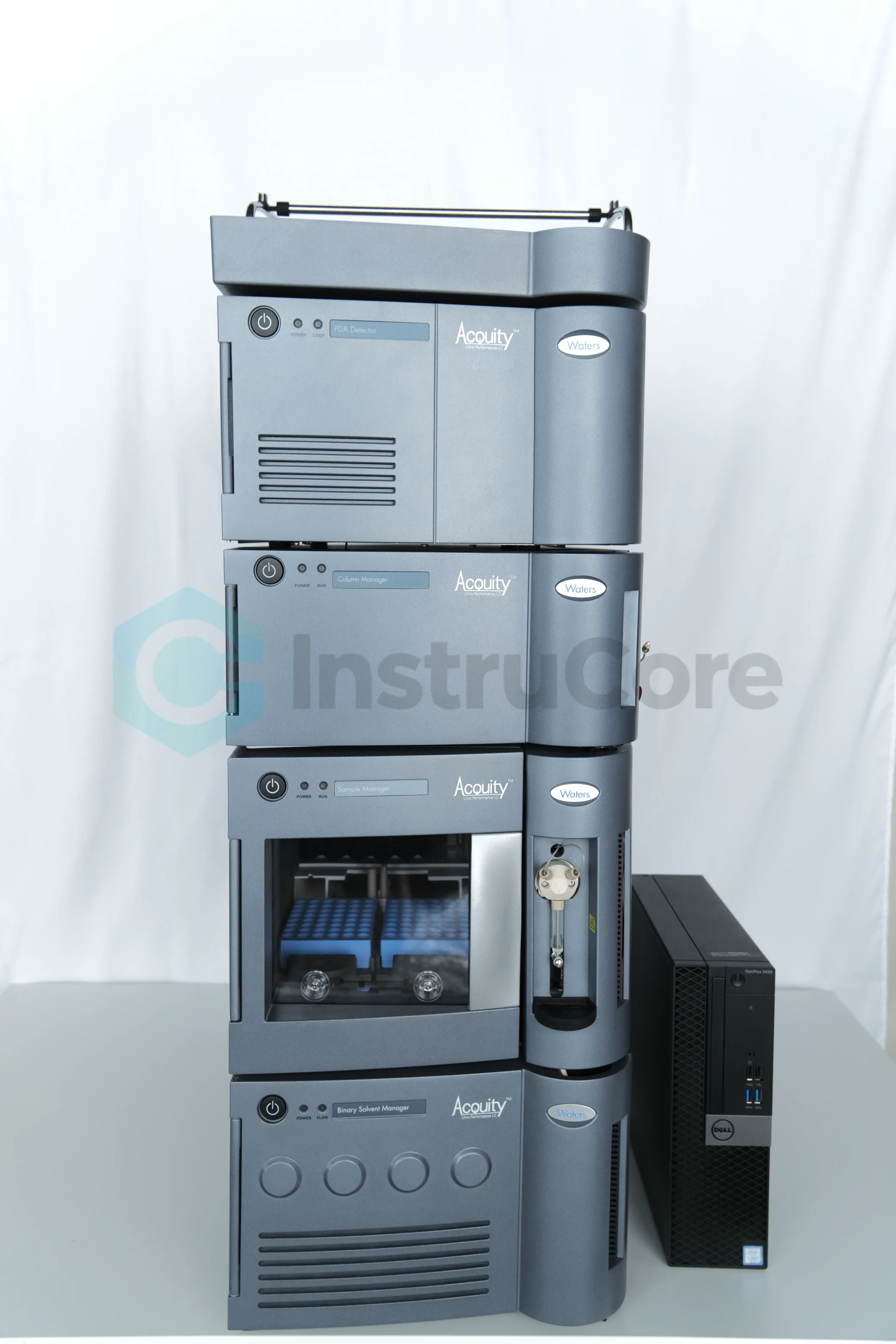

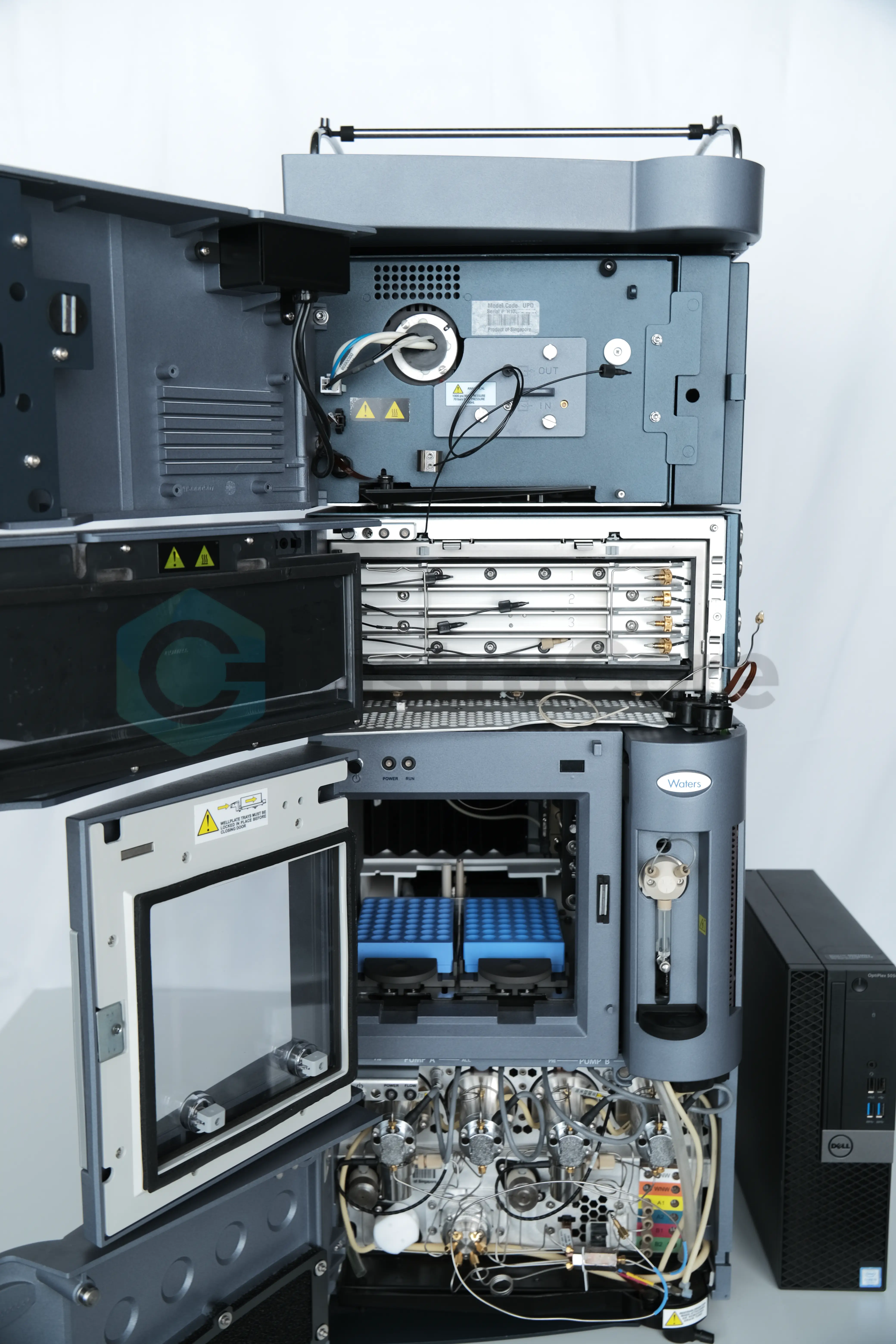

Waters Acquity UPLC System with Binary Solvent Manager, Sample Manager, Column Manager, PDA, Waters Empower 3 Windows 10 Computer

This refurbished Waters ACQUITY UPLC UPLC system with BSM, SM, CM, PDA PC with Empower 3 is fully tested in working condition

Including:

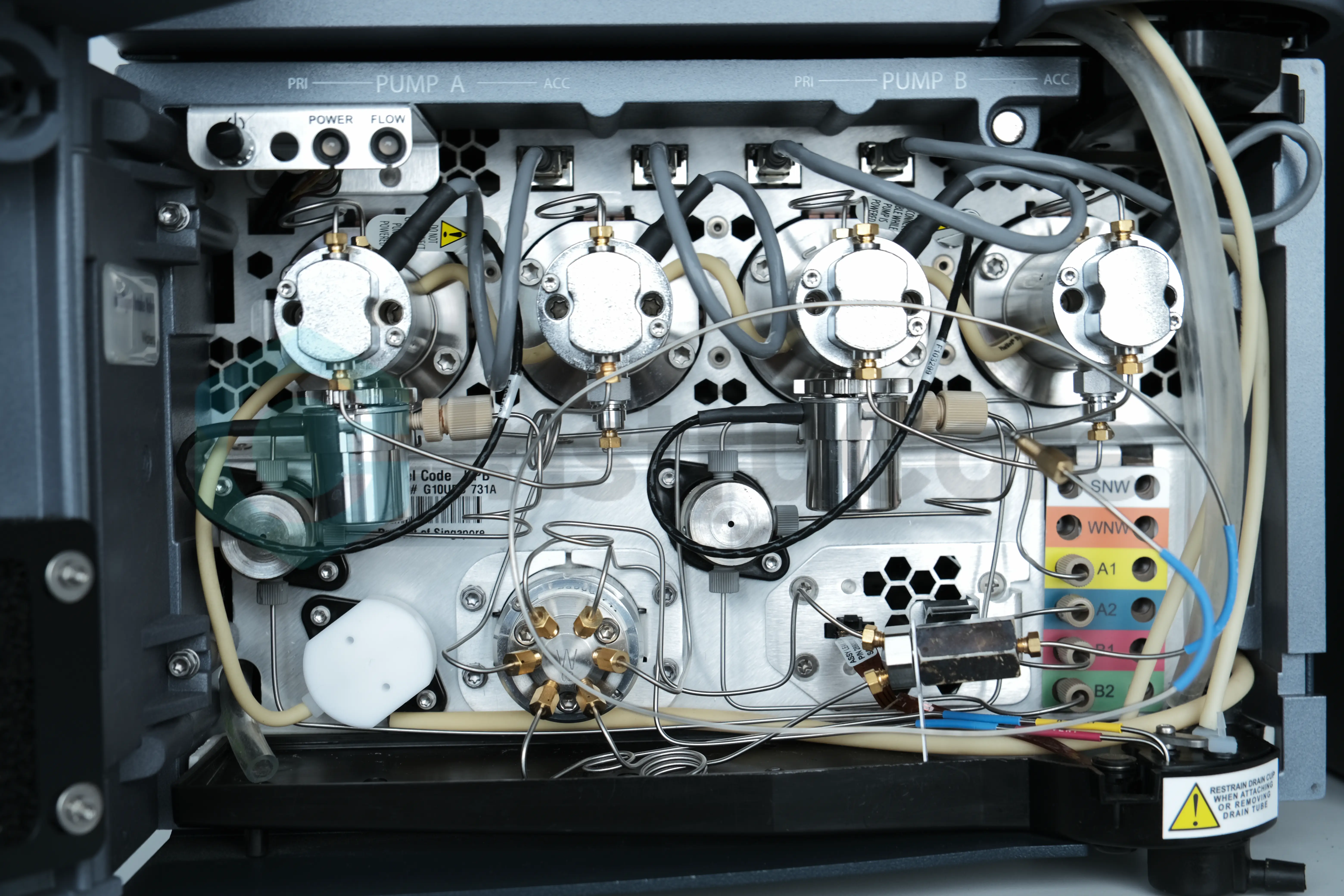

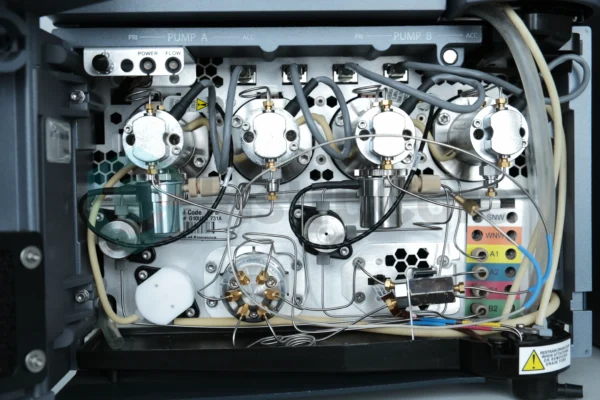

• Waters Acquity UPLC BSM Binary Solvent Manager P/N:186015018

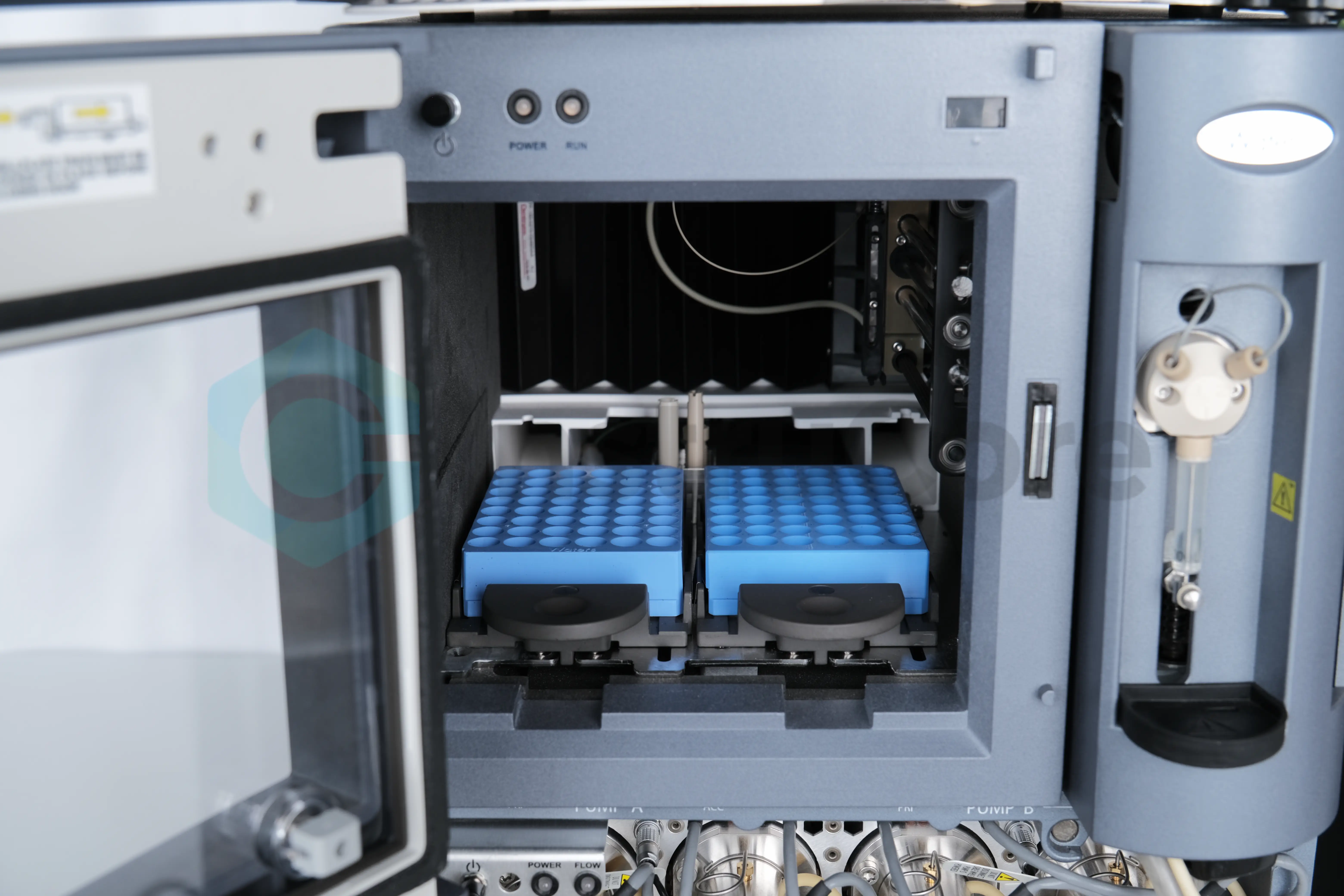

• Waters Acquity UPLC SM Sample Manager P/N:186015005

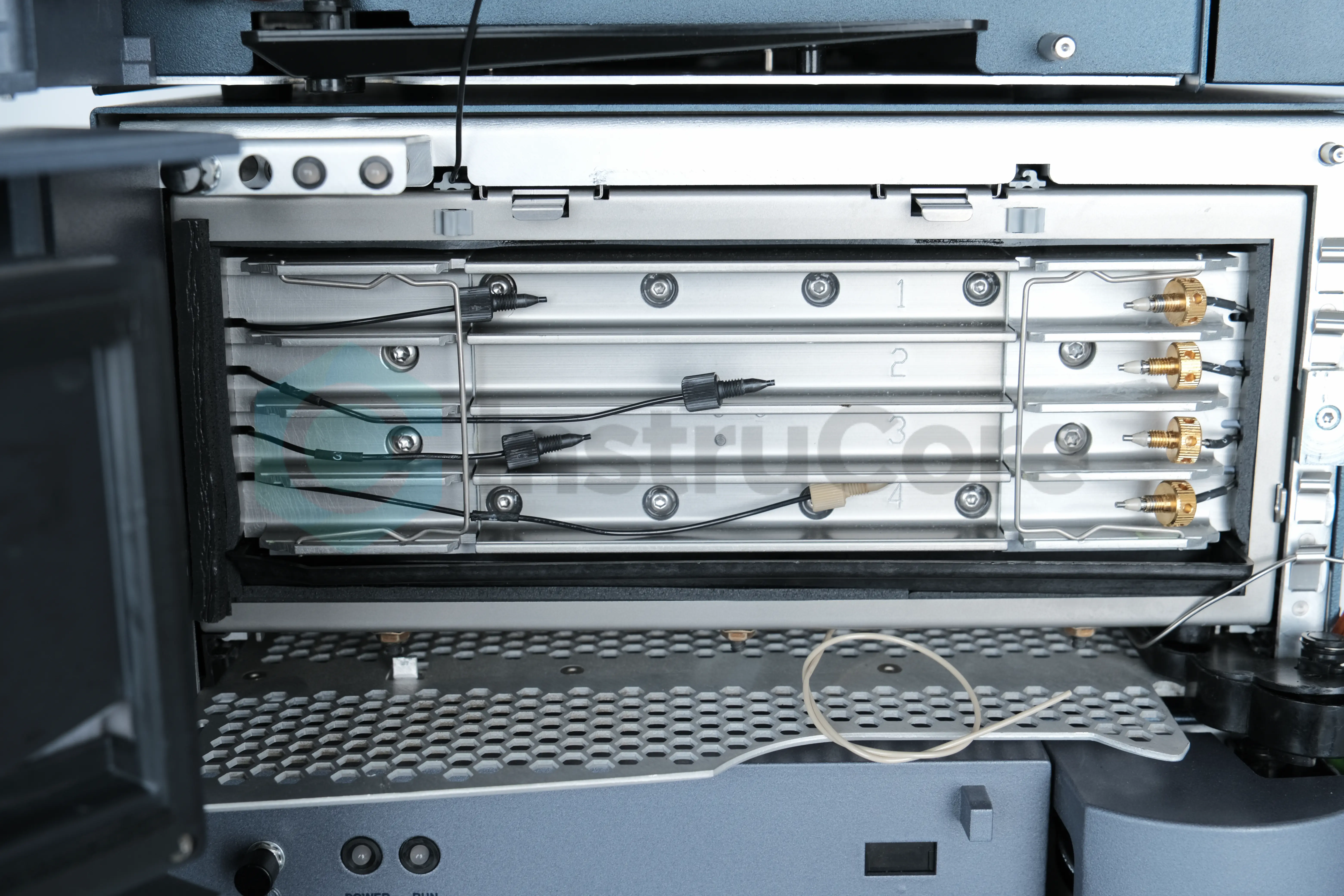

• Waters Acquity UPLC CM Column Manager P/N:186015007

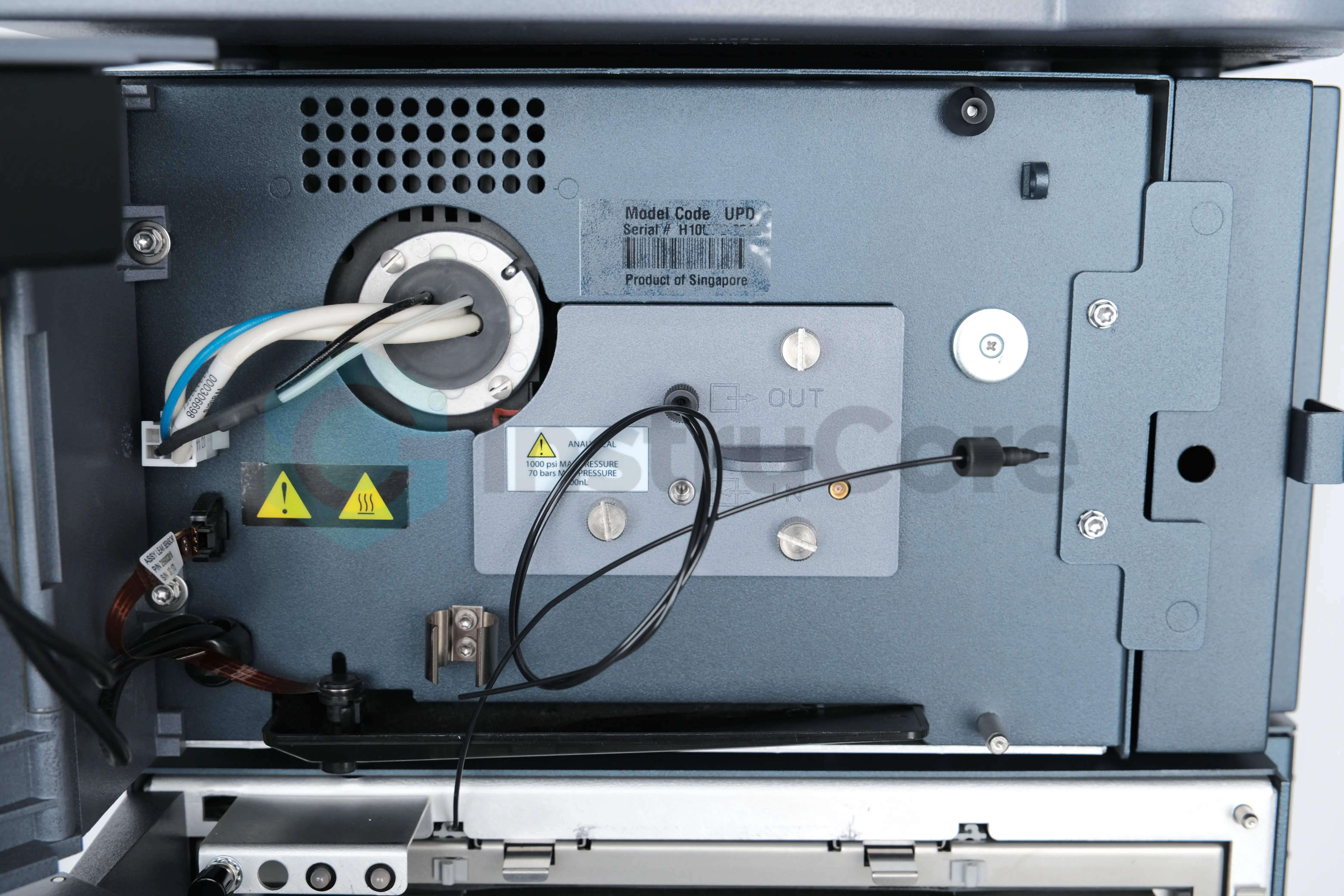

• Waters Acquity UPLC PDA Photodiode Array Detector P/N:186015026
• Windows 10 PC with Empower 3 Software
• Installation guide and user documentation
• Power and communication cables
• 90 Days Warranty

Overviews:

ACQUITY UPLC systems include a binary solvent manager, sample manager, column heater, detectors (tunable ultraviolet, photodiode array, or evaporative light scattering), and a specialized ACQUITY UPLC column. Small-particle chemistries as utilized in UPLC system chromatography generate narrow peaks. To maintain these narrow peaks, extra bandspreading must be controlled by lower detector cell volume, minimized tubing volumes, and specialized fittings. Narrow peak widths can sometimes require higher data rates. The TUV, PDA, and ELS detectors can sample up to 80 data points per second. The binary solvent manager and injector can produce pressures up to 103421 kPa (1034 bar, 15000 psi) and can generate high-pressure gradients with minimal gradient delay. The upper limit of the flow rate range is 2 mL/min. The sample manager can accommodate two plates in a microtiter plate format or 2-mL vials in full-height plate format. An optional sample organizer increases the capacity of the system to as many as 22 microtiter plates (21 in the sample organizer and one in the sample manager), or eight vial racks (seven in the sample organizer and one in the sample manager). Waters® Empower™ chromatography software or MassLynx™ mass spectrometry software controls the systems.
